Overview

In Active Development

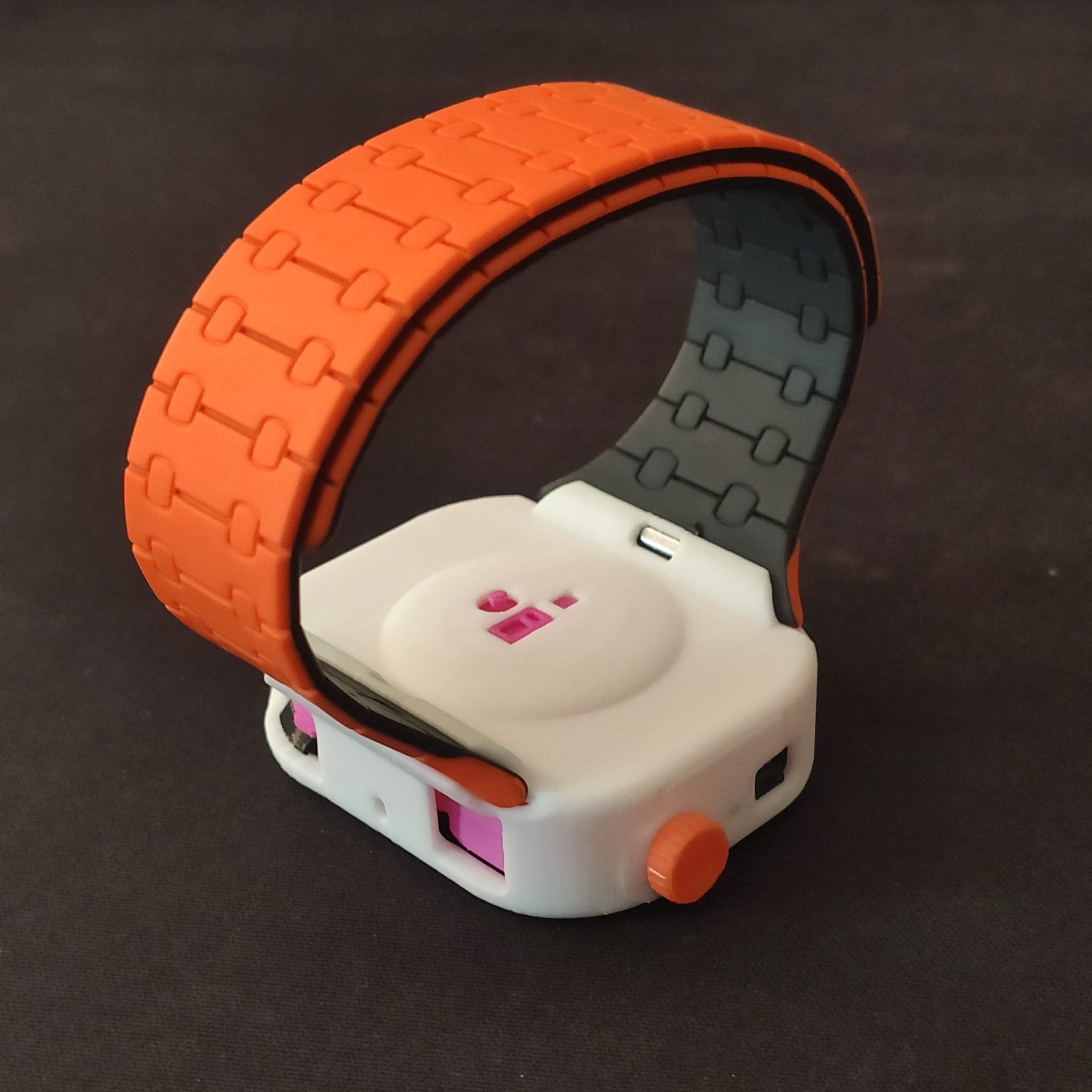

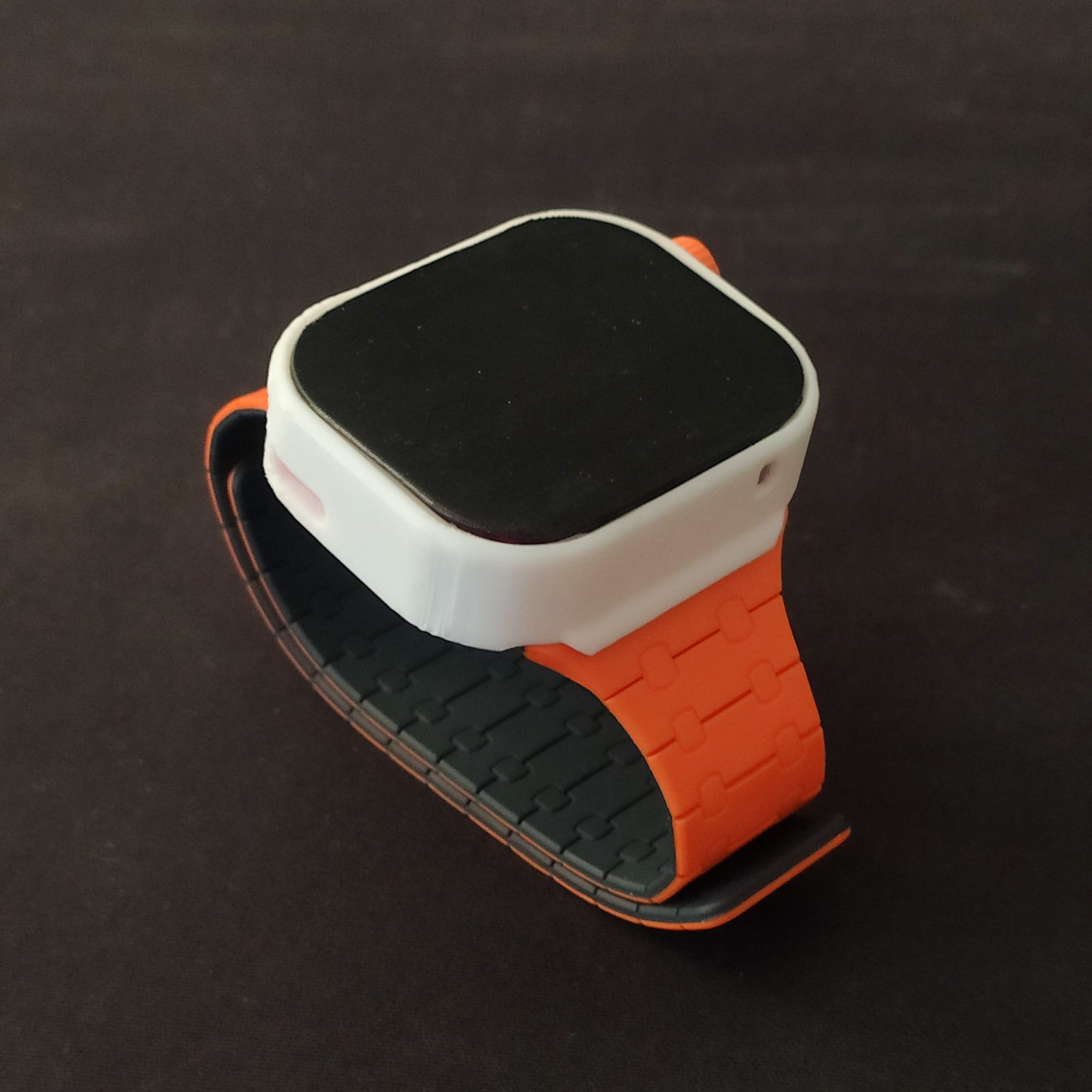

Kompic̄ is a wearable, open-source personal device. It carries a sensor array spanning ambient conditions to biosignals — motion, environment, heart rate, skin temperature, sound, position. It's built to be standalone: no phone, no app, no cloud, no subscription. It doesn't need any of that, and it never will.

Full control over the hardware. Full control over the data. This is something you make, not something you buy — and when it breaks, you fix it.

The name is Croatian street slang: komp ("computer") plus the diminutive -ič — a "little computer," the word you'd use for an actual friend, not a stranger. Pronounced /ˈkompitɕ/ (kompich).

Currently on its second hardware revision, Mk1b (iv8.0): all ten I²C sensors bring up clean, the AMOLED display and touch panel run a working LVGL interface, and GPS streams live fixes. The bugs, the bodges, and how it got here are all on the Development page.

Author

Hardware, firmware, case and webpage design by Ivan Porupski, 2026.

Key Specs

  • ESP32-S3 dual-core Xtensa LX7 @ 240 MHz, 8 MB PSRAM, 16 MB flash
  • MicroSD storage (128 GB+), BLE 5.x
  • 2.06" rectangular AMOLED, 45.6 × 37.3 mm glass
  • Two 1.0 mm 4-layer PCBs: main board + skin-facing daughter board
  • Two-piece titanium case (SLM Ti-6Al-4V), ~48 × 40 × 12 mm
  • 33 g watch body, 56 g with straps
  • ~300 mAh LiPo, USB-C charging

Sensor Suite

SensorPartMeasures
❤️ Optical HR / SpO2MAX30101Heart rate, HRV, blood oxygen, PPG waveforms
🏃 IMULSM6DSV16XAccel, gyro, on-chip decision trees
🔋 Fuel gaugeMAX17048GBattery state-of-charge, cell voltage
🌡️ Skin temperatureTMP117High-precision skin temp trending
🧭 MagnetometerLIS3MDLTRCompass heading, magnetic anomaly
🛰️ GPSu-blox M10SPosition, velocity, atomic time sync
🌍 EnvironmentalBME688Temp, pressure, humidity, VOC / air quality
💡 Ambient lightVEML6030Lux level, display brightness
🎤 MEMS microphoneMSM261DGT003Audio capture, noise level, sound classification
📳 HapticsELV1411A + DRV2605LVibration patterns, alerts, smart wake
🔦 FlashlightWhite LED + BC847C driverUtility light
🚦 Status LEDRGB LEDNotification / mode indicator

Safety Disclaimer

All work with these electronics is done entirely at your own discretion and risk. It is your sole responsibility to ensure you possess the necessary skills, knowledge, and safety equipment for working with electrical components and lithium batteries. Kompic̄ is not a medical device and is not intended to diagnose, treat, or prevent any condition. The author and any contributors are not liable for any direct, indirect, incidental, or consequential damages.

How To Manufacture

Everything needed to build your own — schematics, fab files, assembly steps, and the case.

Circuit + PCB In Progress

Schematics, power tree, KiCad source.

Fabrication In Progress

JLCPCB process, BOM, production files.

Manual Assembly Planned

Hand-assembly walkthrough, reflow profile.

3D Models Planned

Case design, print settings.

View on Onshape → — case, crown; cleanup pending

Firmware

In Active Development

Dual-core ESP-IDF firmware: one core runs hardware drivers and sensor acquisition, the other drives the AMOLED over a DMA-based, double-buffered pipeline in PSRAM.

  • Working now — sensor drivers across the full I²C bus, LVGL 9 display + touch UI, GPS UBX/NMEA parsing with RTC time sync
  • Planned — on-device sleep staging, snore/sound classification, GPS + compass sensor fusion for a breadcrumb trail
// Core 0: hardware drivers + sensor acquisition // Core 1: LVGL UI, double-buffered framebuffer in PSRAM

Development

The build log: bugs, bodges, and bring-up, stage by stage, from the first Mk1 (iv7.1) reflow to Mk1b (iv8.0) hitting a GPS lock.
